1543268C1 Good Quality Bucket Cylinder Seal Kit Fits Case Construction King Loader Backhoe 480F

Ask Lasest Price
Brand Name :	Boom Cylinder Seal Kit
Model Number :	1543268C1
Certification :	ISO9001
Price :	Negotiation
Payment Terms :	Western Union, L/C, T/T, , D/A, D/P, Paypal
Supply Ability :	5000 SET/WEEK
Delivery Time :	3-5 Days After Payment Received(Public Holiday Excluded)

Add to Cart

Product Details
Company Profile

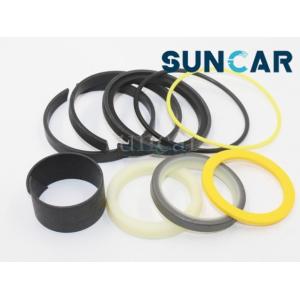

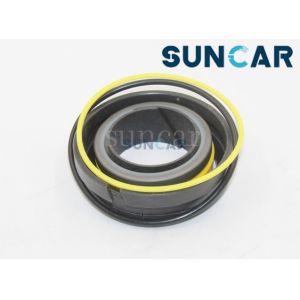

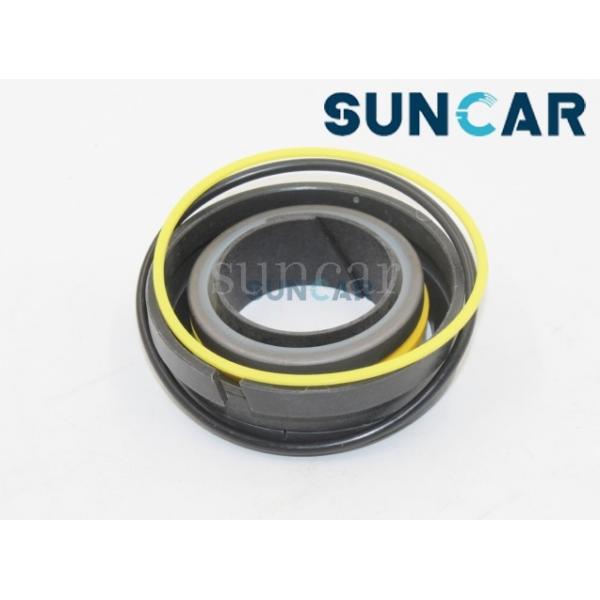

1543268C1 Good Quality Bucket Cylinder Seal Kit Fits Case Construction King Loader Backhoe 480F

1543268C1 Good Quality Bucket Cylinder Seal Kit Fits Case Construction King Loader Backhoe 480F

Product Name	1543268C1 Good Quality Bucket Cylinder Seal Kit Fits Case Construction King Loader Backhoe 480F
Part No.	1543268C1
Material	PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ
Feature	Resistance to high pressure, oil, weather, abrasion, solvent
Applicable Industries	Machinery repair shops, construction works, energy & mining
Color	Black, White or other
Size	Standard Size
MOQ	We Accept Trial Order
Packing	PP BAG & CARTON BOX( According To Your Requirements)
Delivery Time	3-5 Days After Payment Received(Public Holiday Excluded)
Payment	Western Union, L/C, T/T, etc.
Port	HUAGNPU,China (Mainland)
Express	Fedex,TNT,UPS,DHL
Customized	OEM & ODM are welcomed
AppliC.A.Tion	Case Excavator
Condition	New
Suitable Model	(480F) - CASE CONSTRUCTION KING LOADER BACKHOE (9/89-12/94) (8-138) - G103503 BACKHOE BUCKET CYLINDER » 1543268C1

The Following Seal Kits We Also Can Supply:

* Hydraulic Pump Seal Kit

* Control Valve Seal Kit

* O Ring Kit Box

* Gear Pump Seal Kit

* Travel Motor Seal Kit

* Swing Motor Seal Kit

* Pilot Valve Seal Kit/ PPC Seal

* Adjuster Seal Kit

* Center Joint Seal Kit

* Boom Cylinder Seal Kit

* Arm Cylinder Seal Kit

* Bucket Cylinder Seal Kit

* Breaker Hammer Seal Kit

Customer Service:

If you are interested in our products or have any questions, you can send us an email through the mail system or contact us on social media.
Normally, the email will be replied within 24 hours; except every Sunday and holiday. When we return to the office, we will reply as soon as possible
If you do not find the product you need, please send us an email with a picture, and we will be happy to help you.
Positive feedback is very important to us.

Related Parts:

Pos.	Part No	Qty	Parts name	Comments
1	G103503	[1]	CYLINDER BLOCK	CAS CYLINDER ASSEMBLY - 3-1/4 inch (83 mm) ID x 26-5/16 inch (668 mm) stroke, backhoe bucket, Includes: Ref. 2 - 29
2	G103504	[1]	TUBE,34.36" L	CAS ASSEMBLY - cylinder, Includes: Ref. 3
3	D33127	[2]	BUSHING,38.33mm ID x 47.63mm OD x 12.7mm L	CAS - tube
. .	G104252	[1]	GLAND	CAS ASSEMBLY - cylinder, Includes: Ref. 4 - 11, no longer available, order Ref. 22, 1543025C1 gland and 1543268C1 seal kit below Superseded by part number: 1543025C1, 1543268C1
4	NSS	[1]	NOT SOLD SEPARAT	CON GLAND - cylinder
5	G102569	[1]	PLUG	CAS - nylon, thread locking, gland, if used
6	NSS	[1]	NOT SOLD SEPARAT	CON RING - retaining, bushing
7	D95144	[1]	WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk	CAS Wiper - piston rod
8	G101533	[1]	WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk	CAS BUSHING - center
9	G107923	[1]	SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk	CAS - U-cup, piston rod, wide, with O-ring
9	G100778	[1]	SEAL	CAS - U-cup, piston rod, service option - severe heat or cold
9A.	G107997	[1]	SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk	CAS - piston rod, narrow, with groove
10	238-5236	[1]	O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro	CAS Superseded by part number: 510137
11	D38858	[1]	BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk	CAS RING - backup, gland O-ring
11A.	276-2446	[1]	SELF-TAP SCREW,Hex Hd, #8 x 3/8"	CAS SCREW - self-tapping, hex hd, No. 8 NC x 3/8 ", If used Superseded by part number: 86642312
12	1978065C1	[1]	ROD	CAS ASSEMBLY - piston, 2 inch (51 mm) diameter, replaces G103509 rod, Includes: Ref. 13
13	D32865	[2]	BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L	CAS - piston rod
14	G100640	[1]	PISTON	CAS - cylinder
15	G102287	[1]	SEAL,Locking, 79.07mm ID x 83.8mm OD x 6.96mm Thk	CAS - piston
16	S109444	[1]	RING,Square, 5.28mm Thk x 68.96mm ID	CAS - backup, piston seal
17	S109445	[2]	RING,82.55mm OD, Ext	CAS - wear, piston
18	25974R1	[1]	BOLT,Hex, 1" - 14 x 2 1/2", Gr 8	IH - hex head, 1 NS x 2-1/2 inch, grade 8
19	G32303	[1]	WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk	CAS - hardened
20	219-1	[1]	LUBE NIPPLE,1/8" - 27 NPTF	CAS FITTING - grease, straight, 1/8 PT x 21/32 inch Superseded by part number: 80710
21	219-40	[1]	LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF	CAS FITTING - grease, 65 degree, 1/8 PT x 7/8 inch Superseded by part number: 80711
. .	NSS	[1]	NOT SOLD SEPARAT	CON GLAND ASSEMBLY - cylinder, Includes: Ref. 22 - 29
22	1543025C1	[1]	GLAND	IH - cylinder
23	D95144	[1]	WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk	CAS Wiper - piston rod
24	G101533	[1]	WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk	CAS BUSHING - center
25	1542876C1	[1]	SEAL KIT,50.8mm Rod	CAS KIT, SEALS, NSS, Not shown, Order 1543268C1, Incl Ref 26 and 27
26	1543001C1	[1]	SEAL	BHB - rod, NSS, order 1543268C1 kit below
27	1543000C1	[1]	SEAL	BHB - buffer, NSS, order 1543268C1 kit below
28	238-5236	[1]	O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro	CAS Superseded by part number: 510137
29	D38858	[1]	BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk	CAS RING - backup, gland O-ring
. .	G109465	[1]	GASKET KIT	CAS KIT - seal, Includes: Ref. 7 - 9 (P/N G107923), 9A, 11 and 15 - 17, no longer available, order 1543268C1 kit below Superseded by part number: 1543268C1
. .	1543268C1	[1]	SEAL KIT	IH KIT - seal, Includes: Ref. 9A, 15 - 17, 23 - 29 and an instruction sheet

PRODUCT SHOW:

FAQ:

1.If I only know the excavator model, but can not offer parts No., what should I do ?

Q: If possible, you can send us pictures of old products, nameplate or the size for reference.

2.How can I pay the order?

Q: We can receive payment through T/T, Western Union, Paypal(for small amount)

3.When will get the items after I place order?

Q: Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.

4.How can I do if there is something wrong with the items?

Q: First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us and we will check. After it is confirmed, pls return to us , we will offer the correct item.

5.What is your main products ?

Q: We are specialized in the excavator spare parts, such as Hydraulic cylinder seal kit, Center joint seal kit, Transmission Seal Kit Control, valve seal kit, breaker hammer seal kit, Hydraulic pump seal kit, Travel motor seal kit , Main pump seal kit, Swing motor seal kit, Gear pump seal repair kit, Adjuster seal kit, Pilot valve seal kit, O-ring kit box Hydraulic sealing kit, Pump gasket kit, Regulator valve seal kit. If you need other excavator parts, we also can supply as your requirements
