D148100 Hydraulic Cylinder Seal Kit for CASE 586E, 580E, 580SE, 480F, 480F LL, 584E, 860, 585E, 760

The Following Seal Kits We Also Can Supply:

* Hydraulic Pump Seal Kit

* Control Valve Seal Kit

* O Ring Kit Box

* Gear Pump Seal Kit

* Travel Motor Seal Kit

* Swing Motor Seal Kit

* Pilot Valve Seal Kit/ PPC Seal

* Adjuster Seal Kit

* Center Joint Seal Kit

* Boom Cylinder Seal Kit

* Arm Cylinder Seal Kit

* Bucket Cylinder Seal Kit

* Breaker Hammer Seal Kit

Customer Service:

• If you are interested in our products or have any questions, you can send us an email through the mail system or contact us on social media.
• Normally, the email will be replied within 24 hours; except every Sunday and holiday. When we return to the office, we will reply as soon as possible
• If you do not find the product you need, please send us an email with a picture, and we will be happy to help you.
  ​Positive feedback is very important to us.

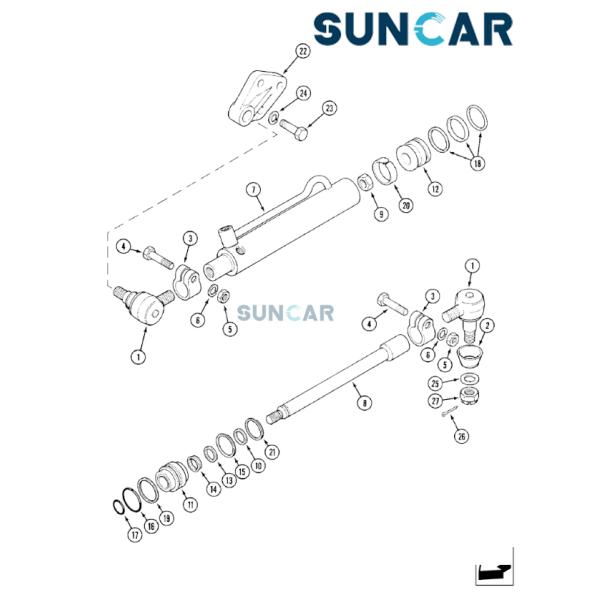

Related Parts:

Pos.	Part No	Qty	Parts name	Comments
. .	234466A1	[2]	STEERING CYLINDER,19.05mm Rod, 165.1mm Stroke	CAS STEERING, Includes: Ref. 1 - 21
. .	234466A1R	[2]	REMAN-HYD CYLINDER	CAS 1394, (1/83-12/87)
. .	234466A1C	[1]	CORE-HYD CYLINDER	CAS Return Number
1	A40962	[2]	BALL JOINT	CAS END ASSEMBLY - male thread, Includes: Ref. 2
2	A41424	[1]	SEAL	CAS - dust cover
3	A27080	[2]	CLAMP	CAS ASSEMBLY - end, Includes: Ref. 4 - 6
4	14-624	[1]	BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5	CAS - hex., 3/8 NF x 1-1/2 inch (Order 114-203) Superseded by part number: 280373
5	25-116	[1]	NUT,Hex, 3/8"-24, G5	CAS - hex., 3/8 inch NF (Order 129-123) Superseded by part number: 86509310
6	92-11038	[1]	LOCK WASHER,3/8"	CAS WASHER, LOCK, 3/8" Superseded by part number: 80680
7	NSS	[1]	NOT SOLD SEPARAT	CON TUBE - cylinder
9	131-1145	[1]	JAM NUT,5/8" - 18	CAS NUT - self-locking hex., 9/16 inch NF
10	A44641	[1]	SPACER,31.62mm ID x 34.37mm OD x 7.7mm L	CAS - head, head
11	D83189	[1]	GLAND	CAS ASSEMBLY - cylinder, Includes: bushing
12	D83190	[1]	PISTON	CAS - cylinder
. .	D148100	[1]	GASKET KIT	CAS KIT - cylinder repair, Includes: Ref. 13 - 20
13	A44651	[1]	WIPER SEAL,18.49mm ID x 25.3mm OD x 3.63mm Thk	CAS WIPER - rod
15	102-23150	[1]	SNAP RING,#150, 1.591", Int, Spiral	CAS RING - lock, gland
16	238-6218	[1]	O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro	CAS Outer gland -218, 90 Duro, 1.234" ID x .139" Thk Superseded by part number: 70924696
17	238-5113	[1]	O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro	CAS Rod to piston -113, 70 Duro, .549" ID x .103" Thk Superseded by part number: 9672467
19	A45035	[1]	SEALING RING,34.88mm ID x 38mm OD x 1.58mm W	CAS RING - backup
21	A44654	[1]	SNAP RING,#125, 1.188", Ext Spiral	CAS RING - lock, outer Superseded by part number: 102-12125
22	N7525	[2]	BRACKET	CAS - cylinder support
23	614-14040	[6]	BOLT,Hex, M14 x 2 x 40mm, Cl 8.8, Full Thd	CAS Bracket Hex, M14 x 40, 8.8, Full Thd
24	892-11014	[6]	LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk	CAS WASHER - lock, 14 mm
25	495-21069	[4]	WASHER,5/8"	CAS - flat, 11/16 x 1-3/4 x 1/8 inch Superseded by part number: 80299
26	432-820	[4]	COTTER PIN,1/8" x 1 1/4"	CAS PIN, SPLIT (COTTER), 1/8" x 1-1/4" Superseded by part number: 87395, 87778232
27	425-1310	[4]	SLOTTED NUT,5/8"-18, G5	CAS NUT - hex, slotted, 5/8 inch NF Superseded by part number: 87446
