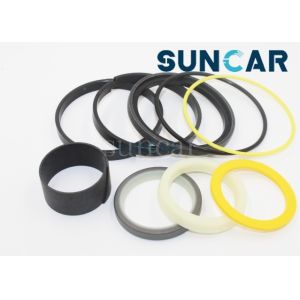

1543274C1 Hydraulic Cylinder Repair Seal Kit Fits Case 480F 850E 855E 680K Loader Backhoe

    Buy cheap 1543274C1 Hydraulic Cylinder Repair Seal Kit Fits Case 480F 850E 855E 680K Loader Backhoe from wholesalers

    Buy cheap 1543274C1 Hydraulic Cylinder Repair Seal Kit Fits Case 480F 850E 855E 680K Loader Backhoe from wholesalers
    • Buy cheap 1543274C1 Hydraulic Cylinder Repair Seal Kit Fits Case 480F 850E 855E 680K Loader Backhoe from wholesalers
    • Buy cheap 1543274C1 Hydraulic Cylinder Repair Seal Kit Fits Case 480F 850E 855E 680K Loader Backhoe from wholesalers

    1543274C1 Hydraulic Cylinder Repair Seal Kit Fits Case 480F 850E 855E 680K Loader Backhoe

    Ask Lasest Price
    Brand Name : CASE
    Model Number : 1543274C1
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : Western Union, L/C, T/T, , D/A, D/P, Paypal
    Supply Ability : 5000 SET/WEEK
    Delivery Time : 3-5 Days After Payment Received(Public Holiday Excluded)
    • Product Details
    • Company Profile

    1543274C1 Hydraulic Cylinder Repair Seal Kit Fits Case 480F 850E 855E 680K Loader Backhoe

    1543274C1 Hydraulic Cylinder Repair Seal Kit Fits Case 480F, 850E, 855E, 680K

    Product Name1543274C1 Hydraulic Cylinder Repair Seal Kit Fits Case 480F, 850E, 855E, 680K
    Part No.1543274C1
    MaterialPU , Rubber , PTFE , NBR , HNBR , ACM , VMQ
    FeatureResistance to high pressure, oil, weather, abrasion, solvent
    Applicable IndustriesMachinery repair shops, construction works, energy
    ColorBlack, White or other
    SizeStandard Size
    MOQWe Accept Trial Order
    PackingPP BAG & CARTON BOX( According To Your Requirements)
    Delivery Time3-5 Days After Payment Received(Public Holiday Excluded)
    PaymentWestern Union, L/C, T/T, etc.
    PortHUAGNPU,China (Mainland)
    ExpressFedex,TNT,UPS,DHL
    CustomizedOEM & ODM are welcomed
    AppliC.A.TionC.A.Terpillar Articulated Truck & Ejector Truck
    ConditionNew
    Suitable Model

    (850E) - CASE LONG TRACK CRAWLER TRACTOR (1/92-12/94)

    (855E) - CASE LONG TRACK CRAWLER TRACTOR (1/92-12/94)(480F) - CASE CONSTRUCTION KING LOADER BACKHOE (9/89-12/94)(680K) - CASE CONSTRUCTION KING LOADER BACKHOE (1/84-12/88)


    The Following Seal Kits We Also Can Supply:


    * Hydraulic Pump Seal Kit

    * Control Valve Seal Kit

    * O Ring Kit Box

    * Gear Pump Seal Kit

    * Travel Motor Seal Kit

    * Swing Motor Seal Kit

    * Pilot Valve Seal Kit/ PPC Seal

    * Adjuster Seal Kit

    * Center Joint Seal Kit

    * Boom Cylinder Seal Kit

    * Arm Cylinder Seal Kit

    * Bucket Cylinder Seal Kit

    * Breaker Hammer Seal Kit


    Customer Service:

    • If you are interested in our products or have any questions, you can send us an email through the mail system or contact us on social media.
    • Normally, the email will be replied within 24 hours; except every Sunday and holiday. When we return to the office, we will reply as soon as possible
    • If you do not find the product you need, please send us an email with a picture, and we will be happy to help you.
      ​Positive feedback is very important to us.

    Related Parts:

    Pos.Part NoQtyParts nameComments
    . .G101210[2]CYLINDERCAS ASSEMBLY - 3-1/2 inch (89 mm) ID x 37-1/4 inch (946 mm) stroke loader bucket
    1G101559[1]TUBE,45.69" LCAS - cylinder
    2CASD37723[2]BUSHINGCAS - tube
    31543021C1[1]CYLINDER END CAPIH GLAND - cylinder
    4NSS[1]NOT SOLD SEPARATCON RING - retaining, gland
    4A.G102569[1]PLUGCAS - nylon, thead locking, gland, if used
    5D95144[1]WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm ThkCAS Wiper - piston rod
    6G101533[1]WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm ThkCAS BUSHING - center
    7G107923[1]SEAL,50.77mm ID x 63.63mm OD x 10.69mm ThkCAS - U-cup, piston rod, wide, with O-ring
    7G100778[1]SEALCAS - U-cup, piston rod, service option - severe heat or cold
    7A.G107997[1]SEAL,50.37mm ID x 63.68mm OD x 3.05mm ThkCAS - piston rod, narrow
    8238-5238[1]O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 DuroCAS Gland -238, 70 Duro, 3.484" ID x .139" Thk Superseded by part number: 87421145
    9G32126[1]BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm ThkCAS - backup, gland O-ring
    10276-2446[1]SELF-TAP SCREW,Hex Hd, #8 x 3/8"CAS SCREW - self-tapping, hex hd, No. 8 NC x 3/8 ", If used Superseded by part number: 86642312
    11G35453[1]RODCAS - piston, 2 inch (51mm) diameter
    12CASD37723[2]BUSHINGCAS - rod
    13G100692[1]PISTONCAS - cylinder
    14G100711[2]SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm ThkCAS
    15G100710[1]RING,Square, 5.28mm Thk x 75.31mm IDCAS - backup, piston seal
    16G102286[1]SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm ThkCAS - piston
    17G32351[1]WASHERCAS - flat, hardened, special Superseded by part number: G104989
    1828-2044[1]BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8CAS - Hex, 1-1/4"-12 NF x 2-3/4", G8
    19219-1[2]LUBE NIPPLE,1/8" - 27 NPTFCAS FITTING - grease, straight, 1/8 PT x 21/32 inch long Superseded by part number: 80710
    . .1543274C1[1]SEAL KITIH KIT - seal, Includes: Ref. 5, 6, 7 (G107923), 7A, 8, 9 and 14-16.
