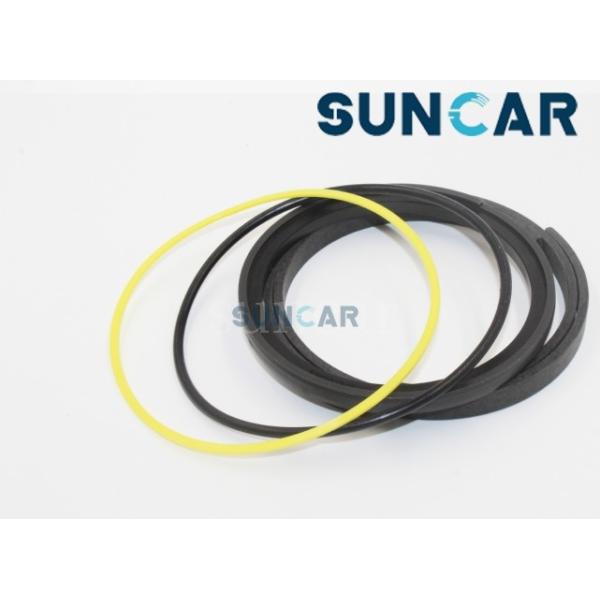

1543273C1 Hydraulic Cylinder Repair Seal Kit Fits Case Crawler Tractor 550E, 855E, 850E, 680K, 550G, 1150K, 1150E, 1150G

    Buy cheap 1543273C1 Hydraulic Cylinder Repair Seal Kit Fits Case Crawler Tractor 550E, 855E, 850E, 680K, 550G, 1150K, 1150E, 1150G from wholesalers

    Buy cheap 1543273C1 Hydraulic Cylinder Repair Seal Kit Fits Case Crawler Tractor 550E, 855E, 850E, 680K, 550G, 1150K, 1150E, 1150G from wholesalers
    • Buy cheap 1543273C1 Hydraulic Cylinder Repair Seal Kit Fits Case Crawler Tractor 550E, 855E, 850E, 680K, 550G, 1150K, 1150E, 1150G from wholesalers
    • Buy cheap 1543273C1 Hydraulic Cylinder Repair Seal Kit Fits Case Crawler Tractor 550E, 855E, 850E, 680K, 550G, 1150K, 1150E, 1150G from wholesalers
    • Buy cheap 1543273C1 Hydraulic Cylinder Repair Seal Kit Fits Case Crawler Tractor 550E, 855E, 850E, 680K, 550G, 1150K, 1150E, 1150G from wholesalers

    1543273C1 Hydraulic Cylinder Repair Seal Kit Fits Case Crawler Tractor 550E, 855E, 850E, 680K, 550G, 1150K, 1150E, 1150G

    Ask Lasest Price
    Brand Name : CASE
    Model Number : 1543273C1
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : Western Union, L/C, T/T, , D/A, D/P, Paypal
    Supply Ability : 5000 SET/WEEK
    Delivery Time : 3-5 Days After Payment Received(Public Holiday Excluded)
    • Product Details
    • Company Profile

    1543273C1 Hydraulic Cylinder Repair Seal Kit Fits Case Crawler Tractor 550E, 855E, 850E, 680K, 550G, 1150K, 1150E, 1150G

    1543273C1 Hydraulic Cylinder Repair Seal Kit Fits Case 550E, 855E, 850E, 680K, 550G, 1150K, 1150E, 1150G, 1150H

    Product Name1543273C1 Hydraulic Cylinder Repair Seal Kit Fits Case 550E, 855E, 850E, 680K, 550G, 1150K, 1150E, 1150G, 1150H
    Part No.1543273C1
    MaterialPU , Rubber , PTFE , NBR , HNBR , ACM , VMQ
    FeatureResistance to high pressure, oil, weather, abrasion, solvent
    Applicable IndustriesMachinery repair shops, construction works, energy
    ColorBlack, White or other
    SizeStandard Size
    MOQWe Accept Trial Order
    PackingPP BAG & CARTON BOX( According To Your Requirements)
    Delivery Time3-5 Days After Payment Received(Public Holiday Excluded)
    PaymentWestern Union, L/C, T/T, etc.
    PortHUAGNPU,China (Mainland)
    ExpressFedex,TNT,UPS,DHL
    CustomizedOEM & ODM are welcomed
    AppliC.A.TionC.A.Terpillar Articulated Truck & Ejector Truck
    ConditionNew
    Suitable Model

    (1150E) - CASE CRAWLER TRACTOR (7/85-12/94)

    (1150G) - CASE CRAWLER TRACTOR (2/95-12/99)(1150H) - CASE CRAWLER TRACTOR (3/00-12/06)(1150H_IND) - CASE CRAWLER TRACTOR (3/00-)(1150K) - SERIES 3 CRAWLER DOZER TIER 3 (NA/EU) (10/06-12/13)(1155E) - CASE CRAWLER TRACTOR (7/85-12/94)(850E) - CASE LONG TRACK CRAWLER TRACTOR (1/92-12/94)(855E) - CASE LONG TRACK CRAWLER TRACTOR (1/92-12/94)(550E) - CASE LONG TRACK CRAWLER TRACTOR (1/92-12/94)(550G) - CASE LONG TRACK CRAWLER TRACTOR (2/95-12/98)(680K) - CASE CONSTRUCTION KING LOADER BACKHOE (1/84-12/88)


    The Following Seal Kits We Also Can Supply:


    * Hydraulic Pump Seal Kit

    * Control Valve Seal Kit

    * O Ring Kit Box

    * Gear Pump Seal Kit

    * Travel Motor Seal Kit

    * Swing Motor Seal Kit

    * Pilot Valve Seal Kit/ PPC Seal

    * Adjuster Seal Kit

    * Center Joint Seal Kit

    * Boom Cylinder Seal Kit

    * Arm Cylinder Seal Kit

    * Bucket Cylinder Seal Kit

    * Breaker Hammer Seal Kit


    Customer Service:

    • If you are interested in our products or have any questions, you can send us an email through the mail system or contact us on social media.
    • Normally, the email will be replied within 24 hours; except every Sunday and holiday. When we return to the office, we will reply as soon as possible
    • If you do not find the product you need, please send us an email with a picture, and we will be happy to help you.
      ​Positive feedback is very important to us.

    Related Parts:


    Pos.Part NoQtyParts nameComments
    1G107039[2]CYLINDER ASSY.CAS CYLINDER ASSEMBLY - bucket, 4 (102) ID x 36-1/4 inch (921 mm) stroke, Includes: Ref. 1 - 19
    1G107040[1]TUBE,4" DIA x 56.92" LCAS - cylinder
    2D33678[2]BUSHING,51.02mm ID x 63.5mm OD x 22.3mm LCAS - 2 (51) ID x 7/8 inch (22 mm) long, tube
    31543019C1[1]CYLINDER END CAPIH GLAND - cylinder
    4G102569[1]PLUGCAS - nylon, thread-locking, gland, if used
    4A.NSS[1]NOT SOLD SEPARATCON RETAINING RING - bushing, if used
    5D95144[1]WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm ThkCAS Wiper - piston rod
    6G101533[1]WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm ThkCAS BUSHING - center
    7G107923[1]SEAL,50.77mm ID x 63.63mm OD x 10.69mm ThkCAS - U-cup, piston rod, wide, with O-ring
    7G100778[1]SEALCAS - U-cup, piston rod, service option - severe heat or cold
    8G107997[1]SEAL,50.37mm ID x 63.68mm OD x 3.05mm ThkCAS - buffer, piston rod, narrow
    9238-5242[1]O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 DuroCAS Superseded by part number: 87421147
    10G32176[1]BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm ThkCAS Gland
    10276-2446[1]SELF-TAP SCREW,Hex Hd, #8 x 3/8"CAS SCREW - self-tapping, hex hd, No. 8 NC x 3/8 ", slotted Superseded by part number: 86642312
    11G107046[1]PISTON RODCAS ROD - piston, 2 inch diameter, Includes: Ref. 12
    12D33024[2]BUSHING,51.02mm ID x 63.5mm OD x 25.4mm LCAS - 1 inch (25 mm) wide, piston rod
    13G100438[1]PISTON,100.89mm Bore, 32.8mm Rod, 50.7mm WCAS - cylinder
    14G102285[1]SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm ThkCAS - piston
    15G100440[1]RING,Square, 5.28mm Thk x 88.01mm IDCAS - backup, piston seal
    16G100448[2]RING,101.6mm OD, ExtCAS - wear, piston
    1728-2044[1]BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8CAS - Hex, 1-1/4"-12 NF x 2-3/4", G8
    18G104989[1]WASHER,34.29mm ID x 60.3mm OD x 4.78mm ThkCAS - flat, hardened, special
    19219-1[2]LUBE NIPPLE,1/8" - 27 NPTFCAS FITTING - grease, straight, 1/8 PT x 21/32 inch Superseded by part number: 80710
    . .1543273C1[1]SEAL KITIH KIT - seal, includes Refs. 5 - 10 (except G100778), & 14 - 16

    PRODUCT SHOW:

    1543273C1 Hydraulic Cylinder Repair Seal Kit Fits Case Crawler Tractor 550E, 855E, 850E, 680K, 550G, 1150K, 1150E, 1150G1543273C1 Hydraulic Cylinder Repair Seal Kit Fits Case Crawler Tractor 550E, 855E, 850E, 680K, 550G, 1150K, 1150E, 1150G

    Quality 1543273C1 Hydraulic Cylinder Repair Seal Kit Fits Case Crawler Tractor 550E, 855E, 850E, 680K, 550G, 1150K, 1150E, 1150G for sale
