1543265C1 DOZER LIFT CYLINDER SEAL KIT FOR CASE CRAWLER TRACTOR 855E, 1150E, 750H, 1150G, 750K, 1150H, 650G, 650H

    Buy cheap 1543265C1 DOZER LIFT CYLINDER SEAL KIT FOR CASE CRAWLER TRACTOR 855E, 1150E, 750H, 1150G, 750K, 1150H, 650G, 650H from wholesalers

    Buy cheap 1543265C1 DOZER LIFT CYLINDER SEAL KIT FOR CASE CRAWLER TRACTOR 855E, 1150E, 750H, 1150G, 750K, 1150H, 650G, 650H from wholesalers
    • Buy cheap 1543265C1 DOZER LIFT CYLINDER SEAL KIT FOR CASE CRAWLER TRACTOR 855E, 1150E, 750H, 1150G, 750K, 1150H, 650G, 650H from wholesalers
    • Buy cheap 1543265C1 DOZER LIFT CYLINDER SEAL KIT FOR CASE CRAWLER TRACTOR 855E, 1150E, 750H, 1150G, 750K, 1150H, 650G, 650H from wholesalers

    1543265C1 DOZER LIFT CYLINDER SEAL KIT FOR CASE CRAWLER TRACTOR 855E, 1150E, 750H, 1150G, 750K, 1150H, 650G, 650H

    Ask Lasest Price
    Brand Name : CASE
    Model Number : 1543265C1
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : Western Union, L/C, T/T, , D/A, D/P, Paypal
    Supply Ability : 5000 SET/WEEK
    Delivery Time : 3-5 Days After Payment Received(Public Holiday Excluded)
    • Product Details
    • Company Profile

    1543265C1 DOZER LIFT CYLINDER SEAL KIT FOR CASE CRAWLER TRACTOR 855E, 1150E, 750H, 1150G, 750K, 1150H, 650G, 650H

    1543265C1 DOZER LIFT CYLINDER SEAL KIT FOR CASE CRAWLER TRACTOR 855E, 1150E, 750H, 1150G, 750K, 1150H, 650G, 650H, 1155E, 850E, 650K, 850G, 850H, 850K, 650L

    Product Name1543265C1 DOZER LIFT CYLINDER SEAL KIT FOR CASE CRAWLER TRACTOR 855E, 1150E, 750H, 1150G, 750K, 1150H, 650G, 650H
    Part No.1543265C1
    MaterialPU , Rubber , PTFE , NBR , HNBR , ACM , VMQ
    FeatureResistance to high pressure, oil, weather, abrasion, solvent
    Applicable IndustriesMachinery repair shops, construction works, energy
    ColorBlack, White or other
    SizeStandard Size
    MOQWe Accept Trial Order
    PackingPP BAG & CARTON BOX( According To Your Requirements)
    Delivery Time3-5 Days After Payment Received(Public Holiday Excluded)
    PaymentWestern Union, L/C, T/T, etc.
    PortHUAGNPU,China (Mainland)
    ExpressFedex,TNT,UPS,DHL
    CustomizedOEM & ODM are welcomed
    AppliC.A.TionCASE
    ConditionNew
    Suitable Model

    (1150E) - CASE CRAWLER TRACTOR (7/85-12/94)

    (1150G) - CASE CRAWLER TRACTOR (2/95-12/99)(1150H) - CASE CRAWLER TRACTOR (3/00-12/06)(1150H_IND) - CASE CRAWLER TRACTOR (3/00-)(1155E) - CASE CRAWLER TRACTOR (7/85-12/94)(850E) - CASE LONG TRACK CRAWLER TRACTOR (1/92-12/94)(850G) - CASE CRAWLER TRACTOR (1/94-12/99)(850H) - CASE CRAWLER TRACTOR (1/00-12/02)(850K) - CRAWLER (11/02-1/05)(850K) - SERIES 2 CRAWLER (TIER 2) (1/05-12/06)(850K) - SERIES 3 CRAWLER TIER 2 (1/05-12/06)(855E) - CASE LONG TRACK CRAWLER TRACTOR (1/92-12/94)(750H) - CASE CRAWLER TRACTOR (1/00-12/02)(750K) - CRAWLER (11/02-12/05)(750K) - SERIES 2 CRAWLER (TIER 2) (1/05-12/07)(750K) - SERIES 3 CRAWLER TIER 2 (12/06-12/07)(650G) - CASE CRAWLER TRACTOR (4/94-12/99)(650H) - CASE CRAWLER TRACTOR (1/00-12/02)(650K) - CRAWLER (11/02-1/05)(650K) - SERIES 2 CRAWLER (TIER 2) (1/05-12/06)(650K) - SERIES 3 CRAWLER TIER 2 (1/05-12/06)(650L) - CRAWLER DOZER TIER 3 (HYDRO) (1/09-)


    The Following Seal Kits We Also Can Supply:


    * Hydraulic Pump Seal Kit

    * Control Valve Seal Kit

    * O Ring Kit Box

    * Gear Pump Seal Kit

    * Travel Motor Seal Kit

    * Swing Motor Seal Kit

    * Pilot Valve Seal Kit/ PPC Seal

    * Adjuster Seal Kit

    * Center Joint Seal Kit

    * Boom Cylinder Seal Kit

    * Arm Cylinder Seal Kit

    * Bucket Cylinder Seal Kit

    * Breaker Hammer Seal Kit


    Customer Service:

    • If you are interested in our products or have any questions, you can send us an email through the mail system or contact us on social media.
    • Normally, the email will be replied within 24 hours; except every Sunday and holiday. When we return to the office, we will reply as soon as possible
    • If you do not find the product you need, please send us an email with a picture, and we will be happy to help you.
      ​Positive feedback is very important to us.

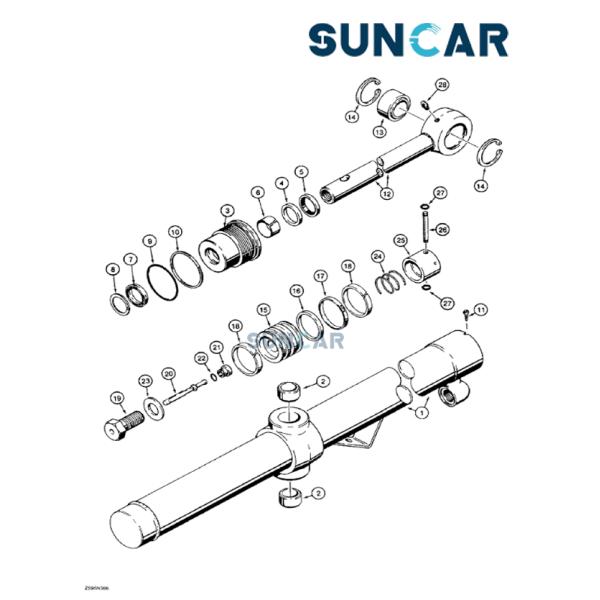

    Related Parts:

    Pos.Part NoQtyParts nameComments
    . .G107365[2]CYLINDER ASSY.CAS CYLINDER ASSEMBLY - lift, 3-1/4 (83) ID x 39-3/16 inch (995 mm) stroke, Includes: Ref. 1 - 28
    1G107366[1]TUBECAS - cylinder, Includes: Ref. 2
    2D31140[2]BUSHING,38.33mm ID x 47.63mm OD x 25.4mm LCAS - 1 inch (25 mm) long, tube
    31542972C1[1]CYLINDER END CAPIH GLAND - cylinder
    4NSS[1]NOT SOLD SEPARATCON RETAINING RING - gland
    5D95143[1]WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm ThkCAS WIPER - piston rod
    6G102425[1]BUSHING,44.45mm ID x 47.45mm OD x 25.1mm ThkCAS - center
    71542998C1[1]SEALING RINGIH - U-cup, piston rod, wide, with O-ring
    7G100777[1]SEAL,44.42mm ID x 57.28mm OD x 10.69mm ThkCAS - U-cup, piston rod, service option - severe heat or cold
    81542999C1[1]SEALIH - piston rod, narrow
    9238-5236[1]O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 DuroCAS Gland -236, 70 Duro, 3.234" ID x .139" Thk Superseded by part number: 510137
    10D38858[1]BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm ThkCAS RING - backup gland O-ring
    11276-2446[1]SELF-TAP SCREW,Hex Hd, #8 x 3/8"CAS SCREW - self tapping, hex hd, No. 8 NC x 3/8 ", slotted Superseded by part number: 86642312
    12G34074[1]PISTONCAS ROD - piston, 1-3/4 inch, 44 mm diameter, Includes: Ref. 13 & 14
    13D46942[1]BEARING,1.75" ID x 2.8125" OD x 1.526"CAS BUSHING - self aligning Superseded by part number: 613524C91
    14103-21281[2]SNAP RING,66.92mm ID x 2.36mm W, IntCAS Ring, Snap, , Bushing 2.812", Int, #281
    15G107909[1]PISTONCAS - cylinder
    16S109444[1]RING,Square, 5.28mm Thk x 68.96mm IDCAS - backup, piston seal
    17G102287[1]SEAL,Locking, 79.07mm ID x 83.8mm OD x 6.96mm ThkCAS - piston
    18S109445[2]RING,82.55mm OD, ExtCAS - wear
    . .G103099[1]LOCK VALVECAS VALVE ASSEMBLY - bypass, Includes: Ref. 19 - 22
    19G32723[1]BOLTCAS - special
    20G110533[1]SPOOLCAS PLUNGER - bypass valve, replaces G104187 plunger
    21G32722[1]BUSHINGCAS SEAT - plunger
    22238-5016[1]O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 DuroCAS -016, 70 Duro, .614" ID x .070" Thk, Plunger seat Superseded by part number: 128359
    23G32351[1]WASHERCAS - flat, hardened, special Superseded by part number: G104989
    24G101523[1]SPRINGCAS - cylinder
    25G100086[1]BLOCKCAS - stop, cylinder
    26G107370[1]PINCAS - retainer
    27100-1137[2]SNAP RING,#37, ExtCAS Ring, Snap, , pin #37, Ext Superseded by part number: 272464
    28219-55[1]LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTFCAS NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg Superseded by part number: 80719
    . .1543265C1[1]SEAL KITIH KIT - seal, includes Refs. 4 - 10 (except G100777) & 16 - 18

    PRODUCT SHOW:

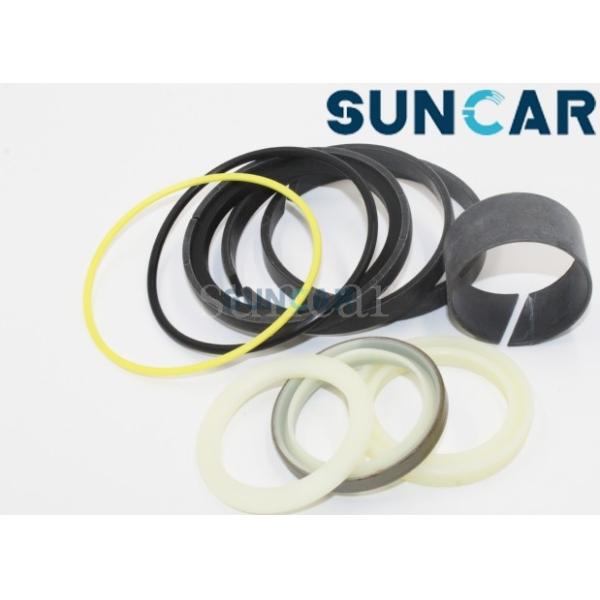

    1543265C1 DOZER LIFT CYLINDER SEAL KIT FOR CASE CRAWLER TRACTOR 855E, 1150E, 750H, 1150G, 750K, 1150H, 650G, 650H
